Product Status
AEC-Q101
Qualified
Type
VRRM
Max.
V
IF
A
IFSM
A
VF
Max.
V
@IF
A
IR
Max.
µA
@VR
V
Package
New Product
-
H TYPE
60
3
80
0.7
3
5
60
SMAF-C
New Product
Y
H TYPE
60
3
80
0.7
3
5
60
SMAF-C
New Product
-
H TYPE
60
5
100
0.75
5
5
60
SMAF-C
New Product
Y
H TYPE
60
5
100
0.75
5
5
60
SMAF-C
New Product
-
Standard
20
1
30
0.5
1
200
20
SMAF-C
New Product
-
Standard
30
1
30
0.5
1
200
30
SMAF-C
New Product
-
Standard
40
1
30
0.5
1
200
40
SMAF-C
New Product
-
Standard
50
1
30
0.7
1
100
50
SMAF-C
New Product
-
Standard
60
1
30
0.7
1
100
60
SMAF-C
New Product
-
Standard
20
2
50
0.5
2
100
20
SMAF-C
  • 1

*NSND = Not Suggested for New Design

Product Description

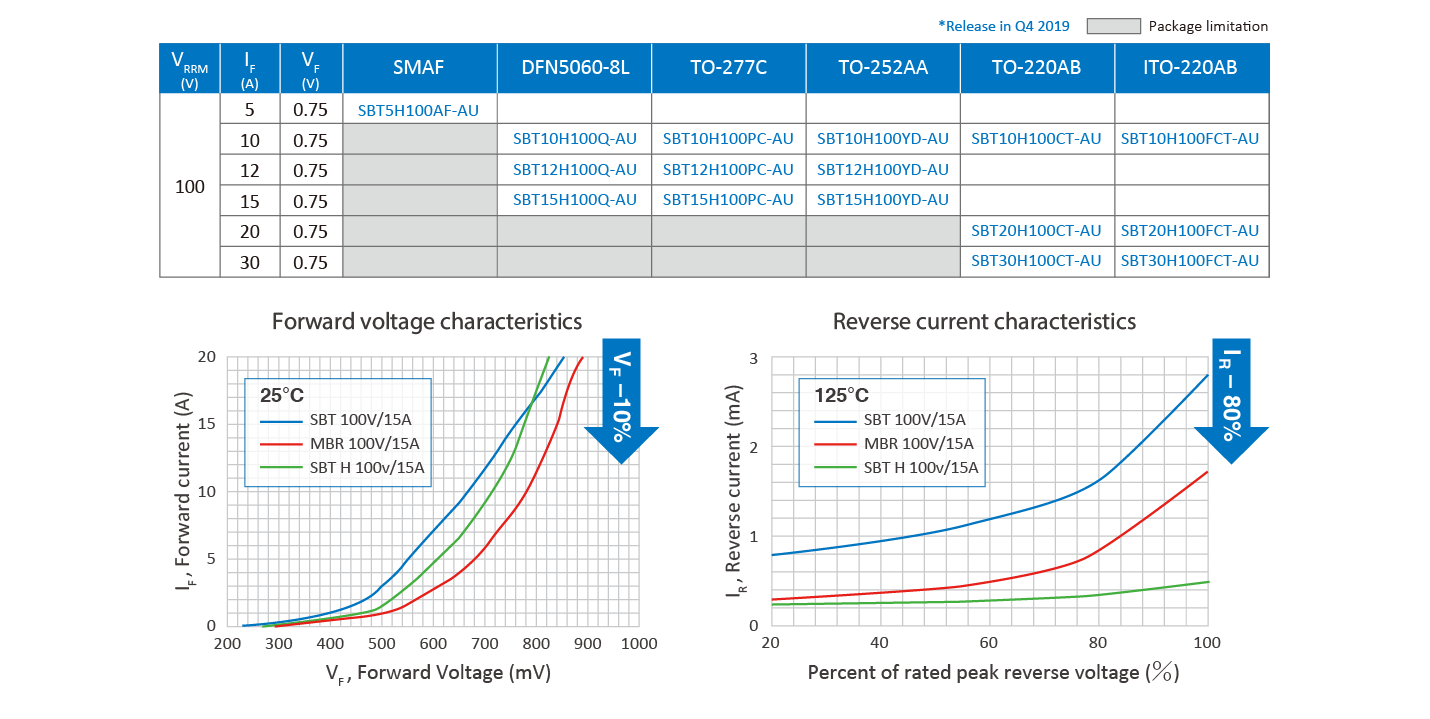

Ultra Low IR Schottky Series For High Temp. Application

Product Features

• Ultra Low reverse current at high temperature
• Low forward voltage drop at high current
• High efficiency with low thermal risk
• Improve reliability and reduce heat-sink
• High current capability
• Optimize system performance & cost
• ACE-Q101 qualified

Application

• Lighting
• Switch Power Supplies
• TV power
• Battery Charger
• Adaptor
• Telecom
• Home Appliance
• Motor

MBR H TYPE 60V-150V series, Planar schottky

MBR H type 60V series

MBR H type 150V series

Operating junction 175℃
