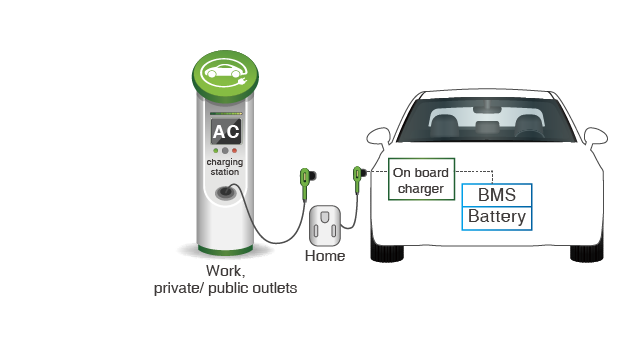

Hybrid and electric vehicles need a highly-efficient on-board AC/DC charger, while OBC should provide the requirements of high power density and fit into limited space and weight. For these requirements, PANJIT provides wide range, high efficiency, and automotive grade product portfolio for automotive on-board charger applications.

Product Features

Rectifier
• Ultra-low conduction losses.
• High forward surge.
• Input rectification of on-board charger.

SiC Schottky
• Low conduction and switching loss.
• High surge current capability.
• Fast reverse recovery.

TVS
• Low leakage current.
• Low clamping voltage.
• High surge current capability.

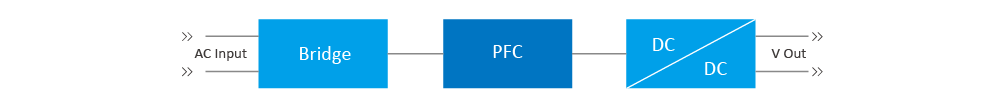

On-board Charger Module Block Diagram

Recommended Devices

Transient Voltage Suppressors

Product Status
AEC-Q101
Qualified
Configuration
PD
W
VRWM
V
VBR @ IT
Min.
V
VBR @ IT
Max.
V
IT
mA
IR @ VRWM
UNI
µA
IR @ VRWM
BI
µA
VC @ IPP
Max.
V
IPP
A
Package
Active
Y
UNI
200
12
13.3
14.7
1
0.5
0
19.9
10.1
SOD-123FL
Active
Y
UNI
200
13
14.4
15.9
1
0.1
0
21.5
9.3
SOD-123FL
Active
Y
UNI
200
14
15.6
17.2
1
0.1
0
23.2
8.6
SOD-123FL
Active
Y
UNI
200
15
16.7
18.5
1
0.1
0
24.4
8.2
SOD-123FL
